48V 280AH - EVE - EV Grade (A+) - 16000Wh - 8000 cycles - Lifepo4 cells

48v 280Ah - EVE - EV Grade (A+) - 16000Wh - 8000 cycles - Lifepo4 cells

Note: new version V3, 8000 cycles, production year 2025, original EVE terminal with double screw connection, Supplied with flexible copper connectors made of genuine high-conductivity copper (no aluminum)

16x EVE 280Ah EV Grade (A+) Lifepo4, 8000 cycles, LF280K

• Individually tested and approved by EVE, delivered with test report, actual capacity average 312Ah, internal resistance 0.15mOhm.
• Suitable for electric vehicles and as battery storage for PV systems.
• Flexible high-quality copper connectors with 40mm² pure copper, nickel-plated and specially surface-treated for maximum conductivity.

• The cells have a storage voltage of 30%.


Characteristics:

• the cells have a storage voltage of 30%
• Each cell was individually tested and approved by the manufacturer EVE
• Each cell was tested several times during the production process:
• Capacity test
• triple voltage test with open circuit voltage
• triple test of internal resistance
• Cells matched by internal resistance and capacity
• Data Matrix Code (QR Code) for tracking and indicating the production date
• including serial number-related test report for each cell

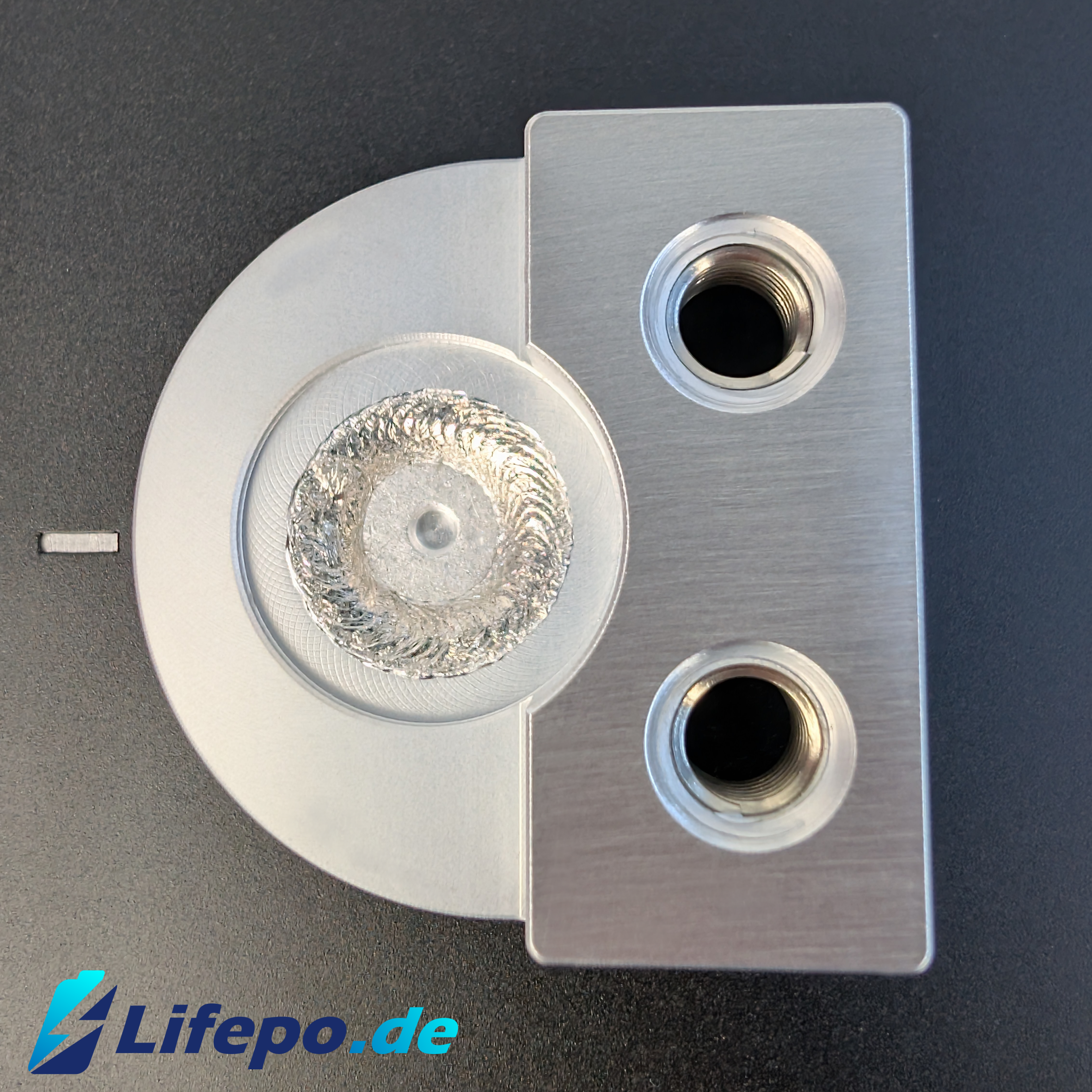

• Solid terminal with double screw connection for maximum contact area
• verifiable origin and traceability through Data Matrix Code
• Guaranteed quality: EV Grade (A+), suitable for use in electric vehicles and as battery storage in PV systems
• Internal resistance 0.15mOhm
• Nominal energy per cell 896Wh
• Data sheet with detailed technical specifications
• Service life of 8000 cycles
• safe and very stable foam packaging (approx. 23 kg per 4 cells)
• selected cells that are also used in the automotive sector
• the cells exceed the nominal capacity of 280Ah (a full 280Ah can be removed)
• 3-year warranty (Warranty conditions)

Scope of delivery:

• including serial number-related test report (capacity, 3x internal resistance, 3x voltage) for each cell
• Incl. 16 pieces 40mm² copper connectors (nickel-plated and specially surface-treated for highest conductivity, 20x2mm pure copper) with double screw connection, 72mm hole spacing
• incl. 16x M6 screws with spring washer

• Each terminal has two reinforced M6 threads (stainless steel thread insert) for permanently stable and firm connection
• incl. 32x transport locks for terminal (removable)
• detailed data sheet

Technical data:

• EVE LF280K
• Width: 174mm
• Height: 205mm
• Thickness: 72mm
• Weight: 5.22kg
• Charging rate: 1C = 280A
• Discharge rate: 1C = 280A
• Cycles: >8000
• Internal resistance: 0.15mΩ


The tightening torque for the new EVE terminals with double screw connection is 6 Nm. Suitable torque wrenches can be found here.
