0% VAT 24V 280AH - EVE - EV Grade (A+) - 8000Wh - 8000 cycles - Lifepo4 cells

24V 280Ah - EVE - EV Grade (A+) - 8000Wh - 8000 cycles - Lifepo4 cells

Note: new version V3, 8000 cycles, production year 2024, original EVE terminal with double screw connection

8x EVE 280Ah EV Grade (A+) Lifepo4, 8000 cycles, LF280K

• Individually tested and approved by EVE, delivered with test report, actual capacity average 313Ah, internal resistance 0.15mOhm
• Suitable for electric vehicles and as battery storage for PV systems
• Reinforced copper connectors with 50 mm² pure copper, nickel-plated and specially surface treated for maximum conductivity
• the cells have a storage voltage of 30% ( HERE you will find the cells loaded+balanced+initialized)

Characteristics:

• the cells have a storage voltage of 30%
• Each cell was individually tested and approved by the manufacturer EVE
• Each cell was tested several times during the production process:
• capacity test
• triple voltage test with open circuit voltage
• triple test of the internal resistance
• Cells matched to internal resistance and capacity
• Data Matrix Code (QR Code) for tracking and indicating the production date
• incl. Serial number-related test report for each cell

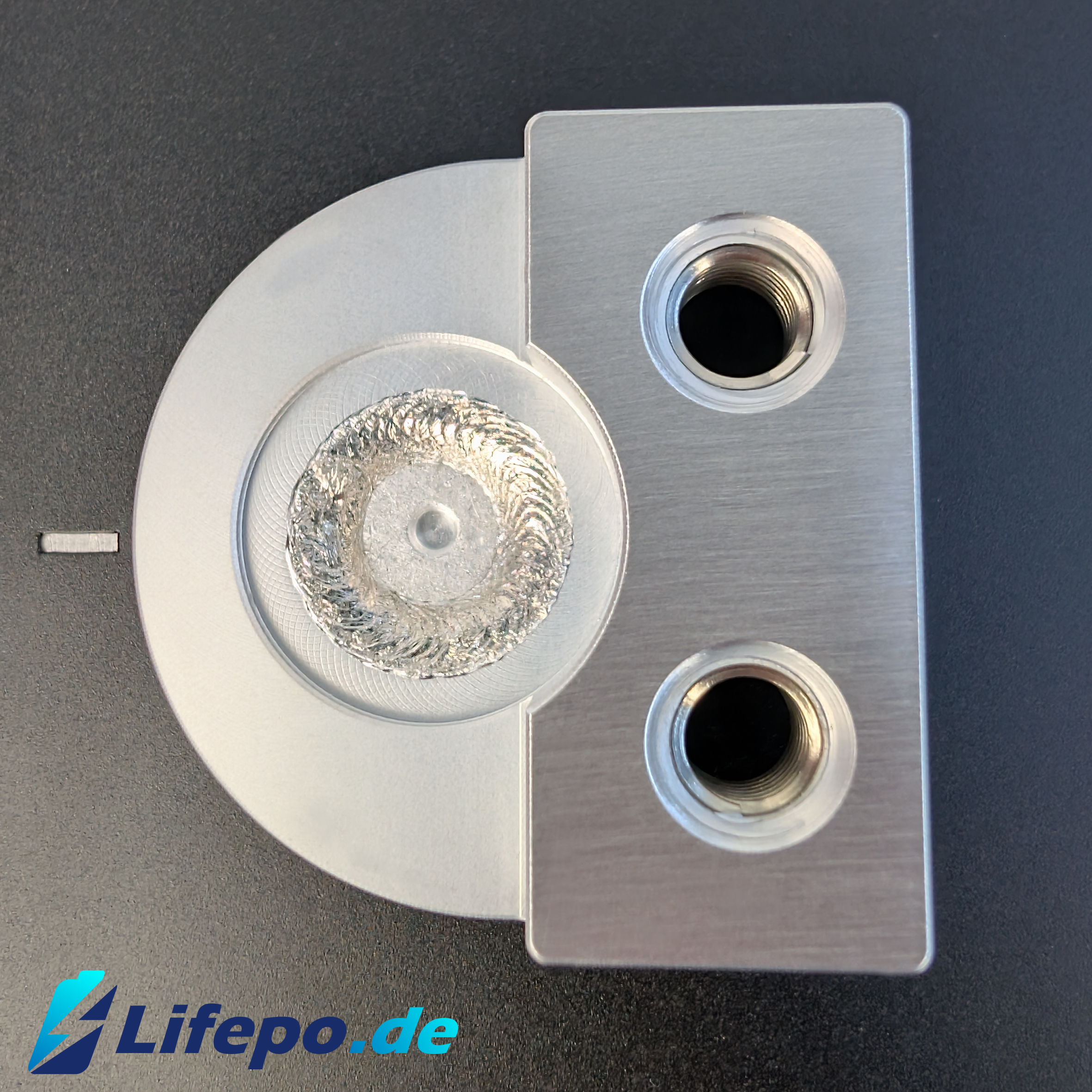

• Solid terminal with double screw connection for maximum contact area
• verifiable origin and traceability through Data Matrix Code
• High quality: EV Grade (A+), suitable for use in electric vehicles and as battery storage in PV systems
• internal resistance 0.15mOhm
• Nominal energy per cell 896Wh
• data sheet with detailed technical specifications
• service life of 8000 cycles
• safe and very stable foam packaging (approx. 23kg per 4 cells)
• selected cells that are also used in the automotive sector
• The cells exceed the nominal capacity of 280Ah (a full 280Ah can be removed guaranteed)
• 3-year warranty ( warranty conditions )

Scope of delivery:

• incl. Serial number-related test report (capacity, 3x internal resistance, 3x voltage) for each cell
• incl. 8 pieces 40mm² copper connectors (nickel-plated and specially surface treated for highest conductivity, 20x2mm pure copper) with double screw connection, 72mm hole spacing
• incl. 16x screws M6 with spring washer
• Each terminal has two reinforced M6 threads (HELICOIL® thread insert) for permanently stable and firm connection
• incl. 16x transport locks for terminal (removable)
• Detailed data sheet

Technical data:

• EVE LF280K
• Width: 174 mm
• Height: 205 mm
• Thickness: 72 mm
• Weight: 5.22kg
• Charging rate: 1C = 280A
• Discharge: 1C = 280A
• Cycles: >8000
• Internal resistance: 0.15 mΩ


The tightening torque for the new EVE terminals with double screw connection is 6Nm. You can find suitable torque wrenches here .
