Premium LiFePO₄ battery system – German engineering for your energy future

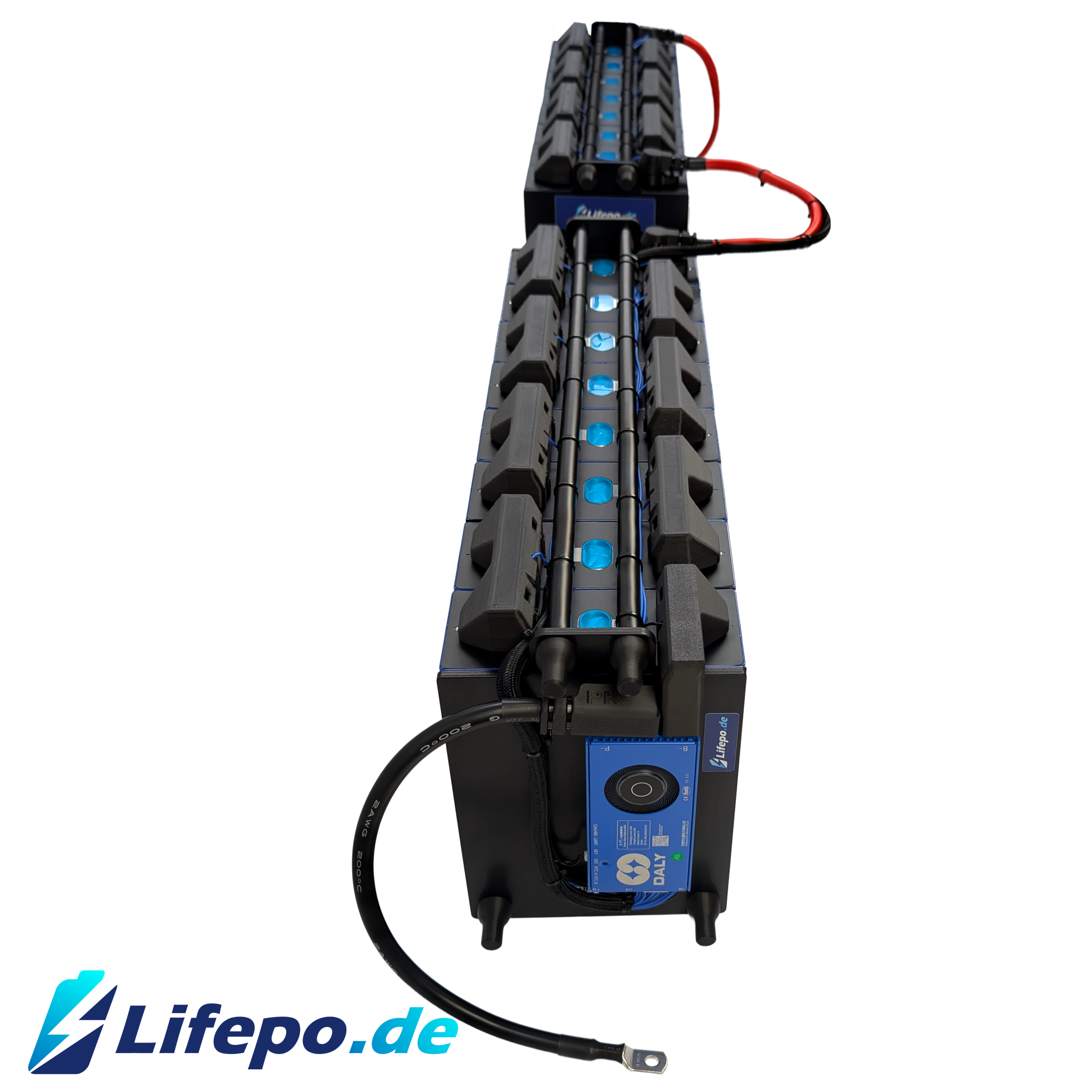

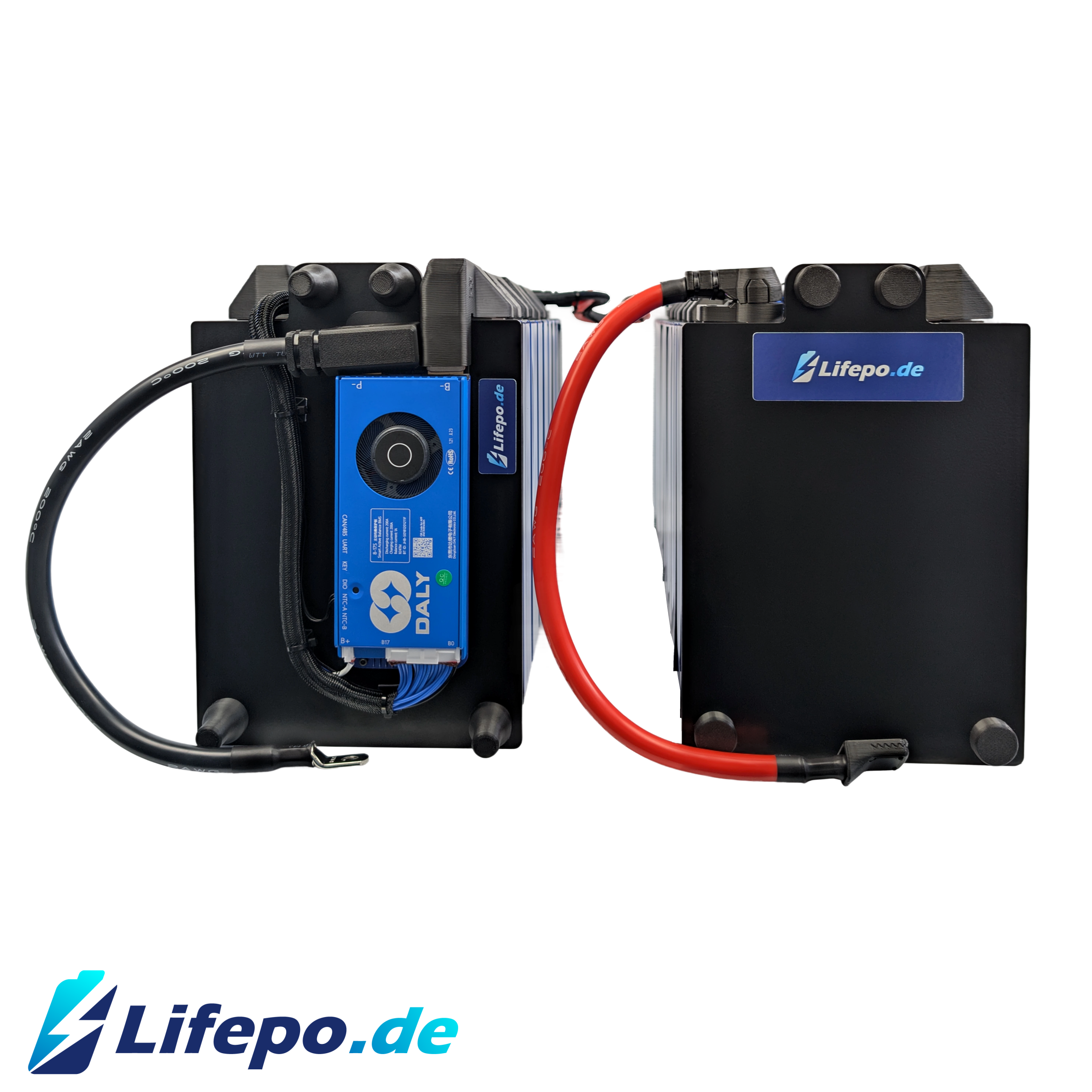

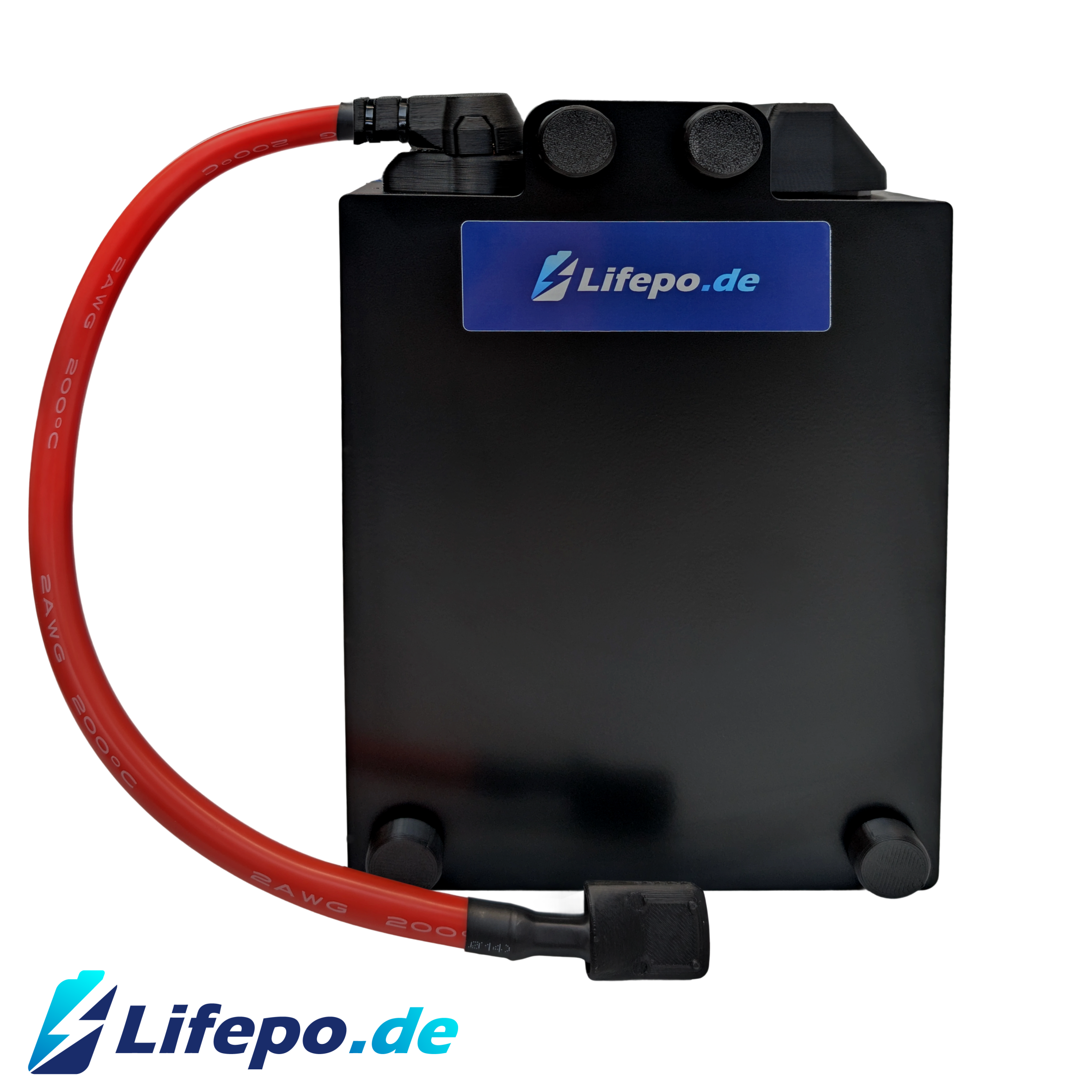

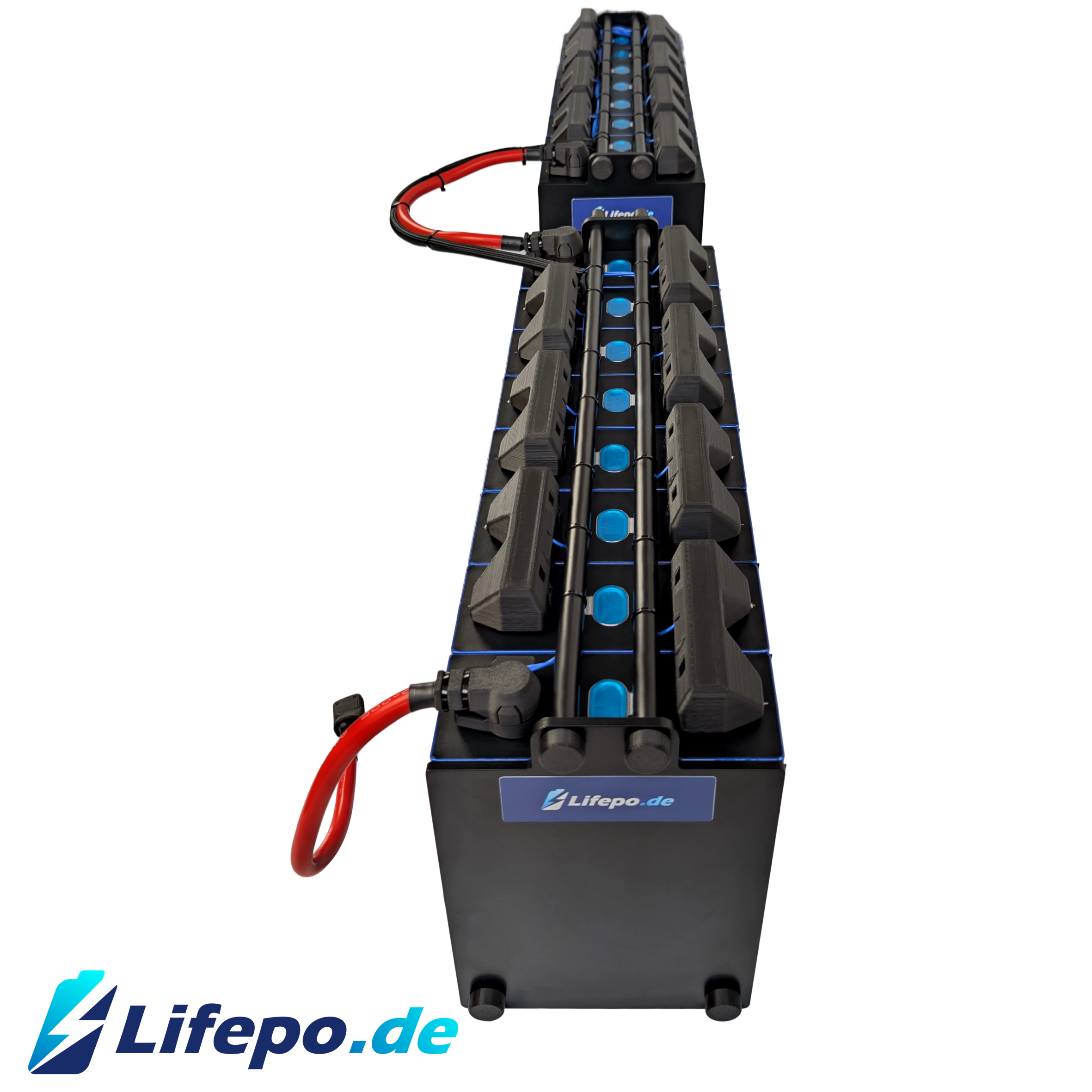

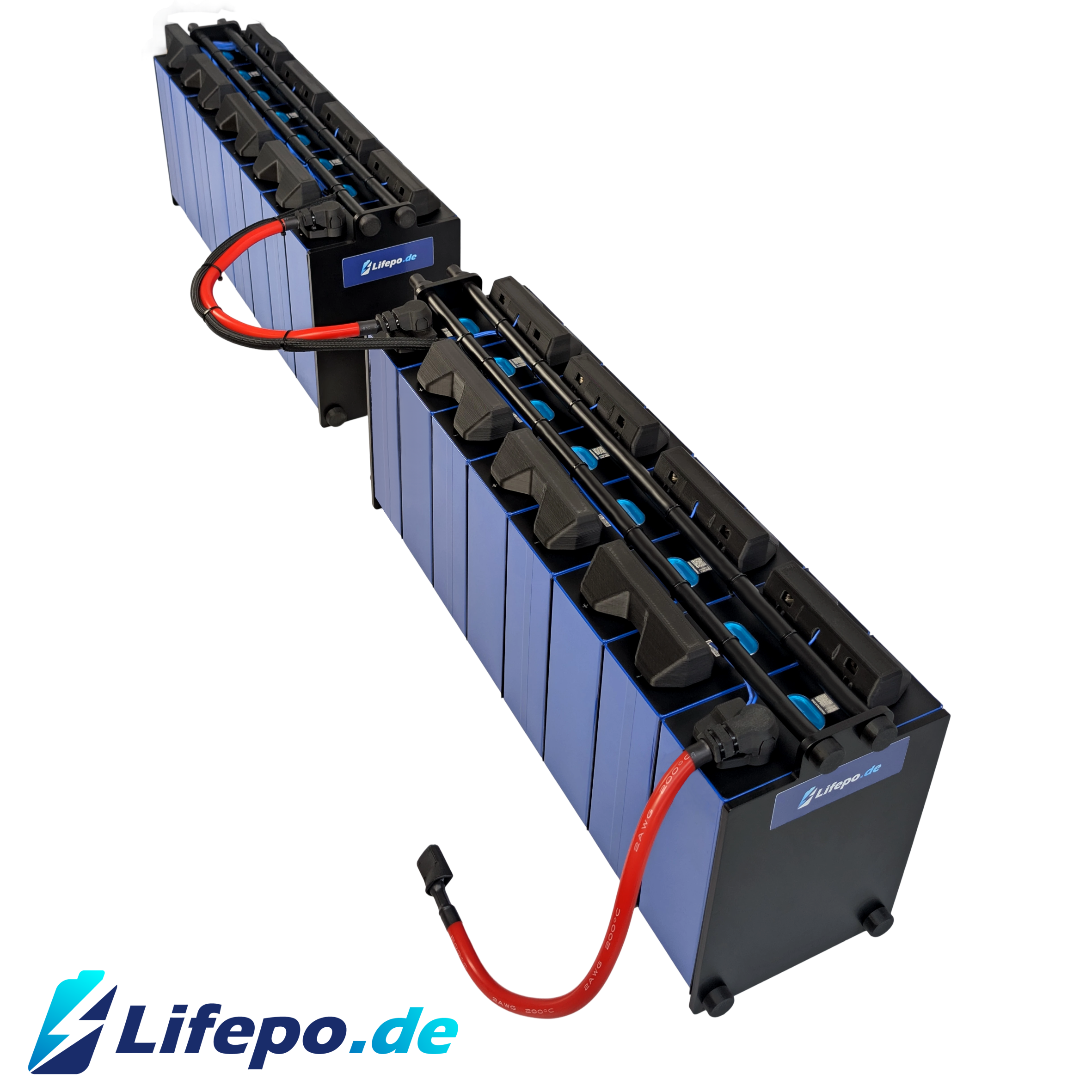

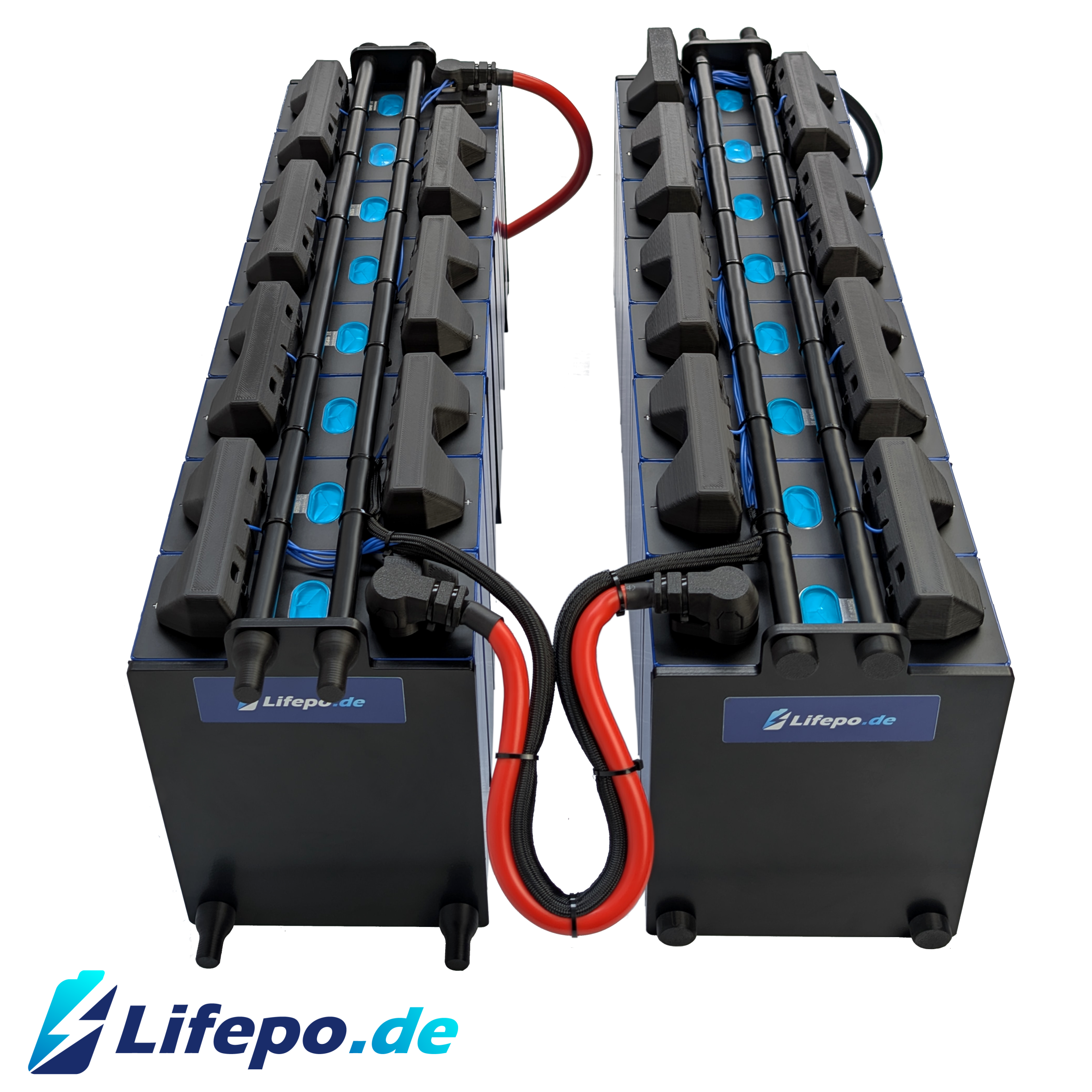

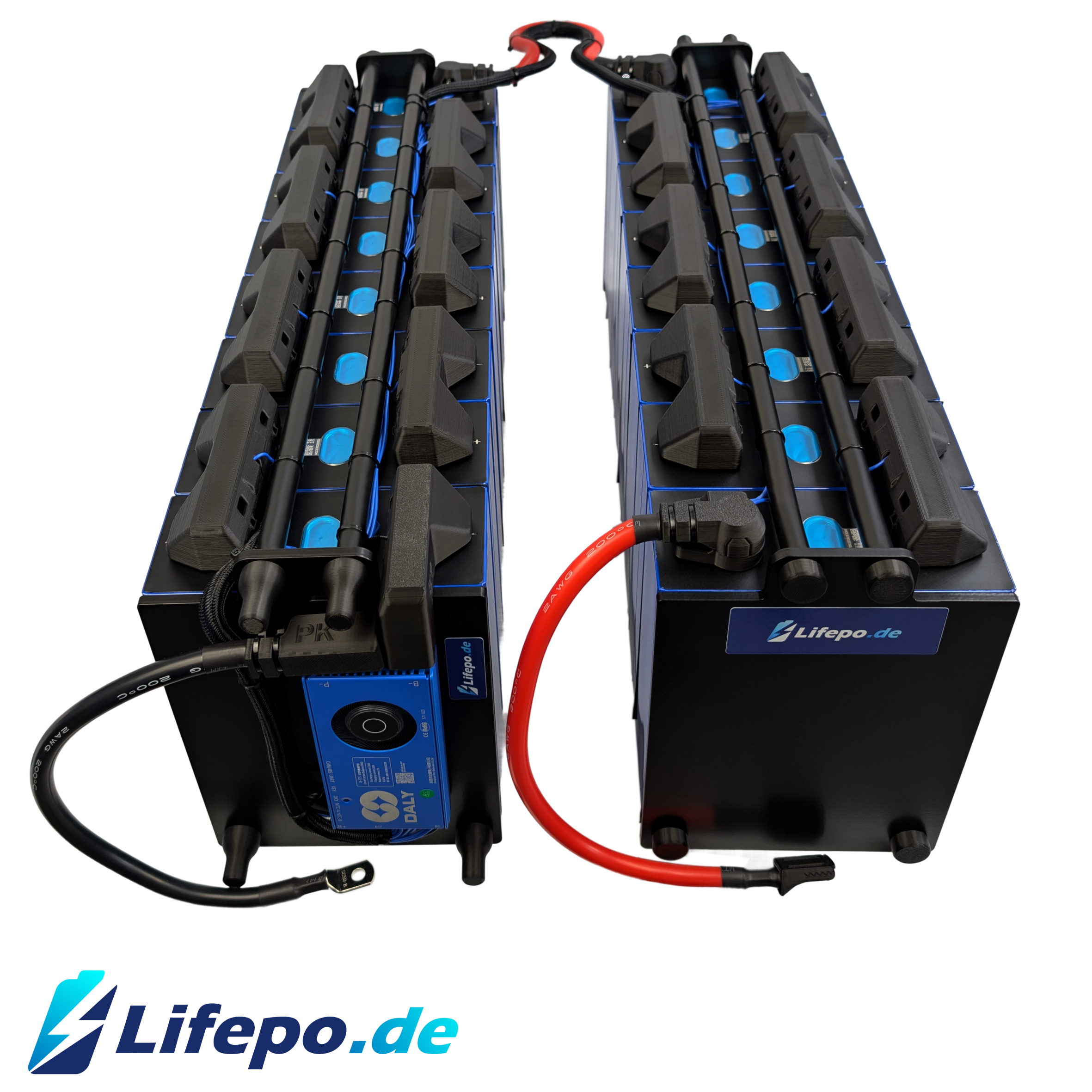

Battery 48V 16kWh single row
Powerful. Secure. Design-oriented.
Developed by Dr. Sellmair NanoElektroTechnik GmbH and distributed under the Lifepo.de brand, this complete premium LiFePO₄ battery system combines state-of-the-art technology with German engineering excellence, exclusive design, and maximum reliability—including a 3-year manufacturer's warranty.
_____________________________
Performance, dimensions and weight
• Power: 10240 watts continuous power
• Length: 2x63 cm
• Width: 17.5 cm
• Height: 26 cm (also possible lying down, then 17.5 cm high)
• Weight: 102.2 kg
_____________________________
The 48V version is available in the following designs:

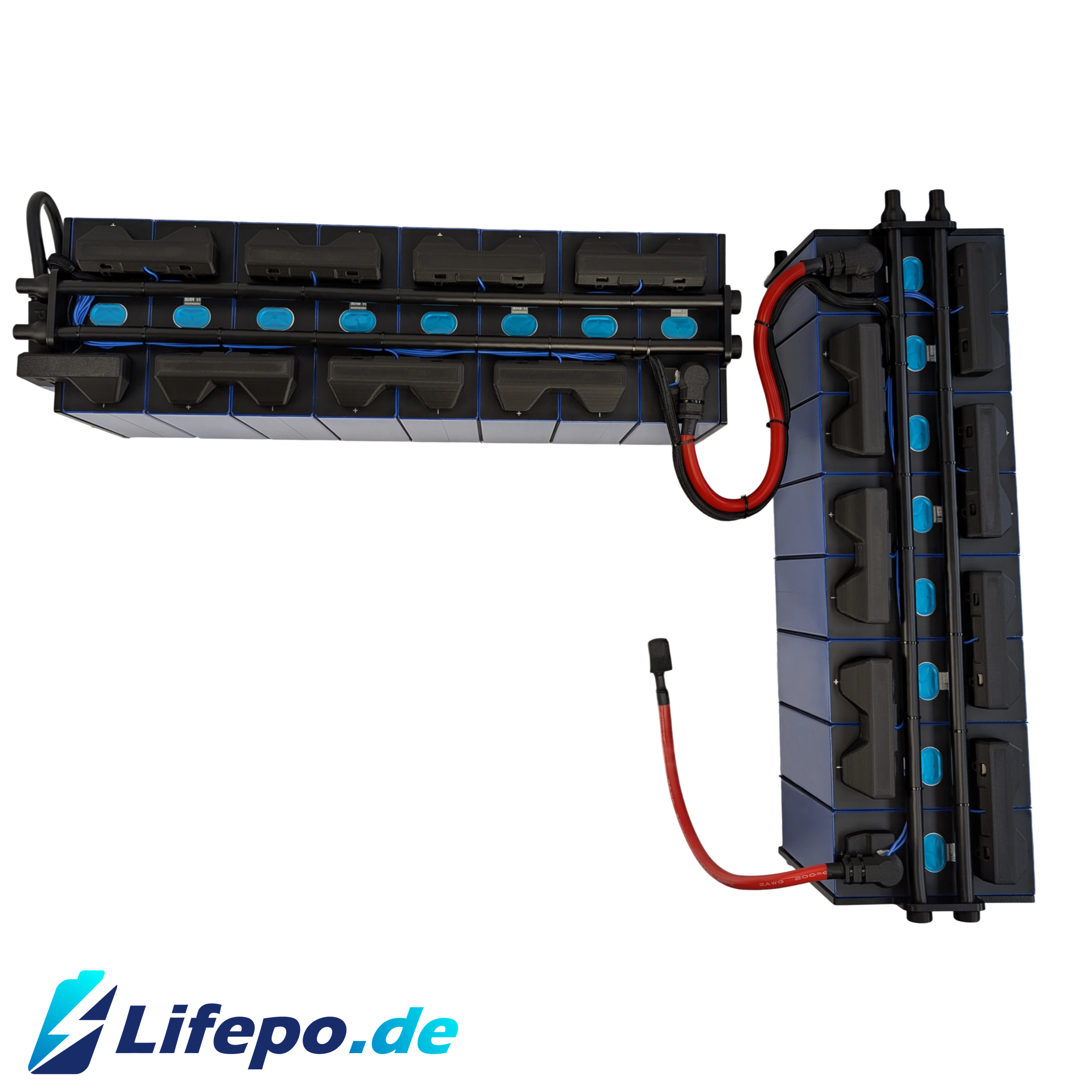

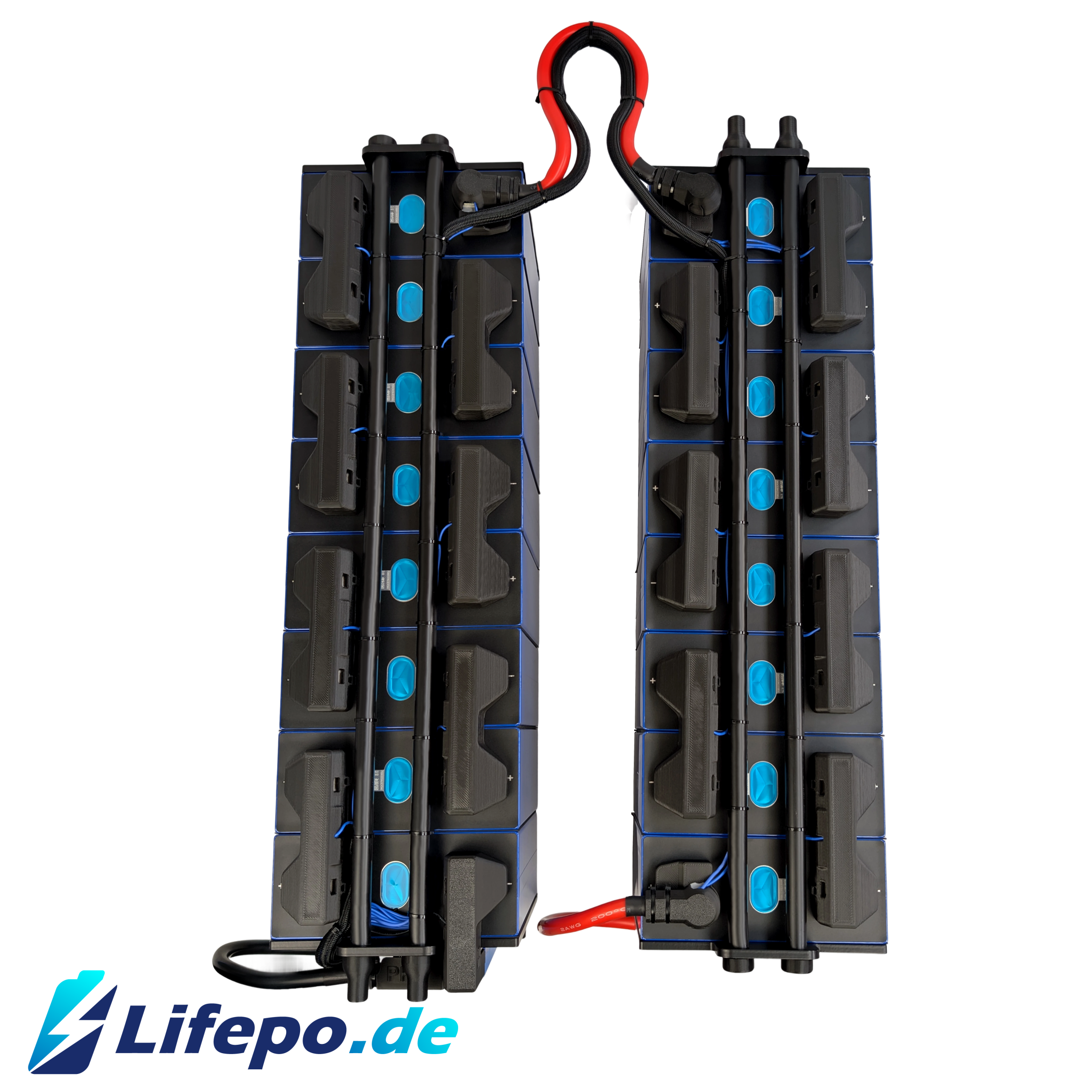

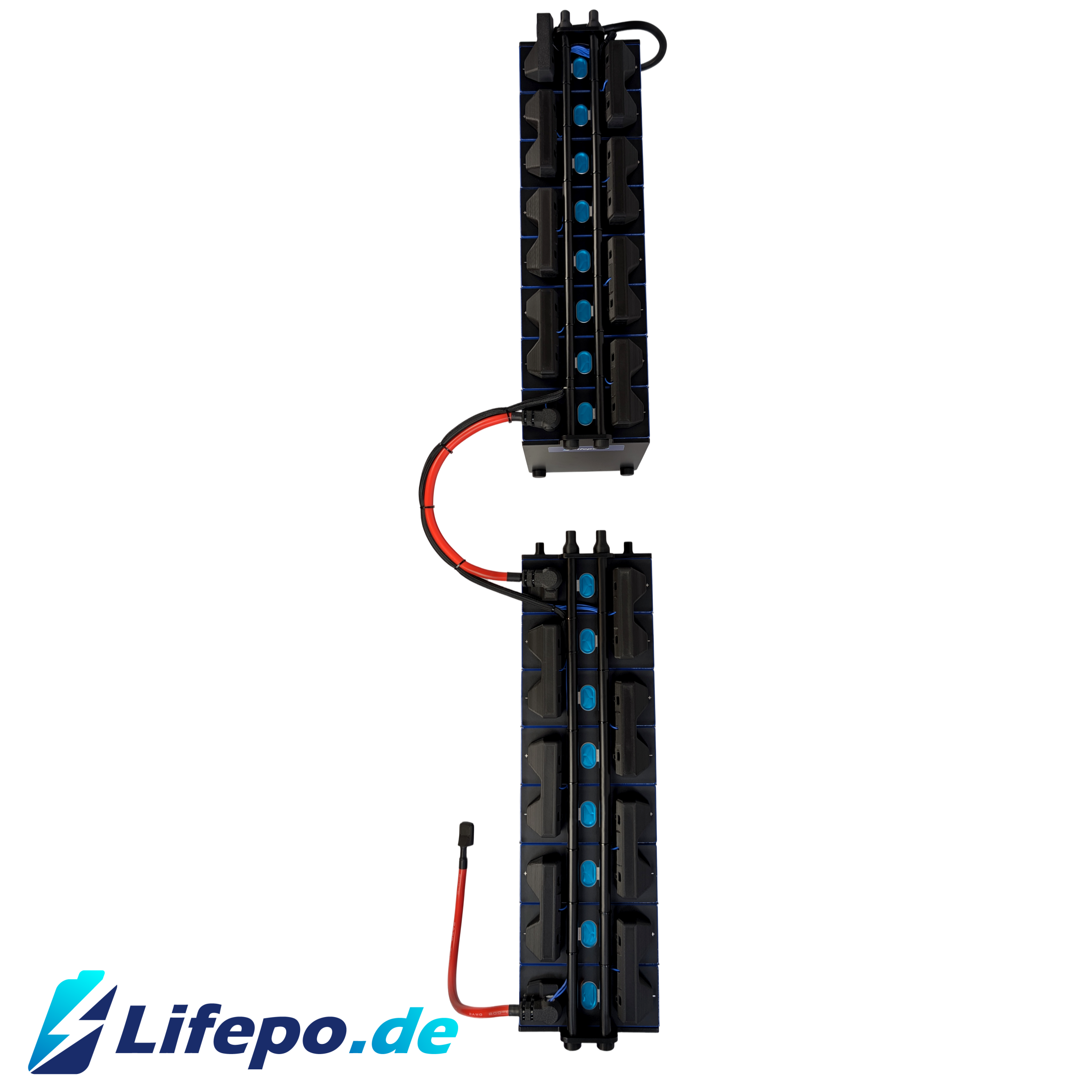

• 48V 16kWh single row – slim, elongated & flexible
• 48V 16kWh two-row – compact & rectangular
• Battery systems in 12V & 24V are also available.
👉 A detailed performance comparison can be found here: Performance comparison
_____________________________
Why this battery system?
☑️ Security at the highest level – with intelligent protection technology
☑️ Unique design – patent-pending & protected functional and design elements
☑️ Contains flexible copper connectors with secure double screw connection
☑️ Smart battery management system in the latest version
☑️ Future-proof technology – BMS with active cell balancer and Bluetooth capability
☑️ Instructions down to the smallest detail – German illustrated assembly instructions in printed form
☑️ Made in Germany – Development, production & quality control in Freising near Munich
☑️ Sustainably durable – designed for decades of operation
☑️ Maximum flexibility – easily expandable
☑️ Reliable customer service – our service team based in Freising provides professional expertise
☑️ Expertise – rely on our expertise and our experience as a long-standing manufacturer
_____________________________
Everything included – ready to use in minutes
A complete kit is delivered, just waiting for you to put it together and put it into operation.
Included are:
• All required battery cells including bracing technology
• All relevant contact protection covers
• All attachments
• Special tool (including torque wrench with 6Nm for perfect tightening torque of the screws)
• Comprehensive, illustrated German assembly instructions
• Configuration help, tips & tricks and much more.
Whether you are a professional or a technology enthusiast – this system leaves no questions unanswered.
👉 An exact list of all parts included in the delivery can be found at the very bottom of the product description.
_____________________________
Technical highlights at a glance
• Bluetooth connection for convenient settings & status control
• Active cell balancer – for perfect cell voltage over years
• Parallel module integrated – similar systems can be easily combined
• Temperature & single cell monitoring
• Charge level indicator
• Discharge/charge control is independent of each other
• configurable via free Bluetooth app
• Expansion? No problem! Simply connect another battery system of the same type – the system will automatically adjust.
_____________________________
Top battery cells from the brand manufacturer EVE – a quality that convinces
• Grade A+ cells – no compromise on quality and safety
• Internal resistance: only 0.16 mOhm
• Lifespan: 8,000 cycles (subsequent residual capacity 70% and still usable) and proven reliable technology
• Solid double connections with stainless steel threaded insert for permanently best conductivity and stable connection
• With test report & serial number – each cell has its own test report and is traceable
Packed in a padded foam box (approx. 24 kg / 4 cells) with specially developed and unique transport lock to protect the terminals from damage.
_____________________________
LiFePO₄ – the battery with the better values
• Significantly lighter than lead/gel batteries
• Fully usable capacity (no memory effect)
• Maintenance-free & safe in operation
• Enormous cycle stability & service life
_____________________________
3-year warranty – Direct from the manufacturer
Many issues can be resolved quickly by our experienced customer service. Should a part be defective, we will provide a replacement quickly and easily. Click here for our Warranty conditions.
_____________________________
⭐ Customer satisfaction is our goal!
Read what others say about us:
👉 Real reviews of Lifepo.de can be found on Trustpilot and TrustedShops!
☑️ Certified online shop – trust in quality!
Lifepo.de is through the Buyer seal of the Händlerbund certified.
For security, data protection & reliable service.
👉 You can find out more about our certification here: Buyer seal
_____________________________
Lifepo.de stands for powerful, safe and sophisticated energy storage solutions – developed and produced with passion in Germany.
Order now and be ready for the energy future tomorrow.
_____________________________

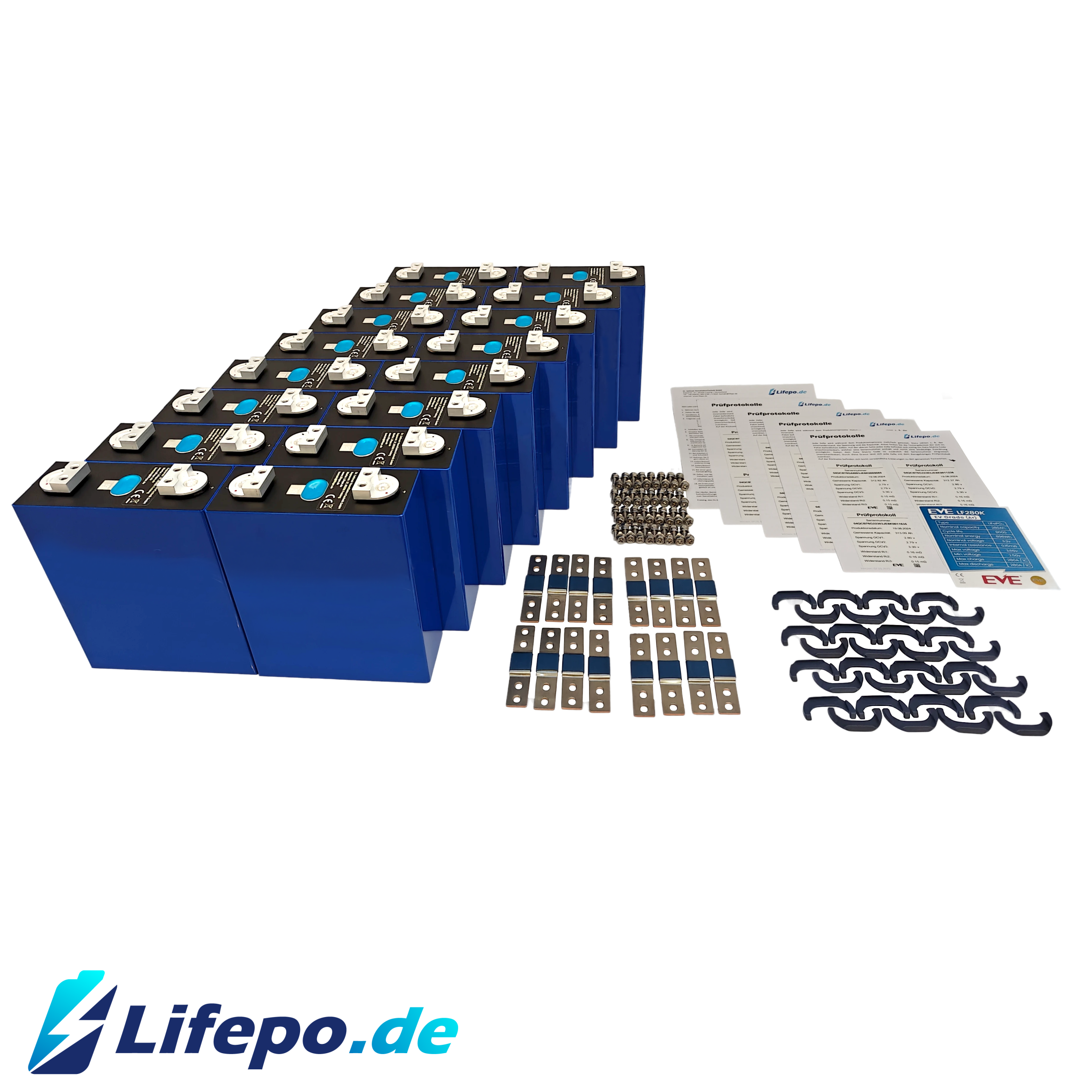

The scope of delivery of the product consists of the following components:
- 16x LF280K battery cells
- Transport locks (2 pieces per battery cell)
- Document: Instructions for intended use
- one printed test report per battery cell
- 22x flexible copper connector 72mm
- 64x screws M6x16mm
- Document: Data sheet flyer for LF280K in A6 format
- 8x threaded rods with 2 nuts each
- 8x black protective hose
- 48V BMS 200A with active balancer and fan
- Balancer cable for 48V, length approx. 95cm
- Temperature sensor with 2 sensors
- RS485/CAN cable
- Bag with two single BMS screws M6x14mm
- blue protection board against voltage peaks
- B+ light blue silicone cable approx. 95cm
- Torque wrench with 6Nm
- Socket wrench insert 10mm
- Socket wrench insert 17mm
- 4x screws M2.5x5mm with cylinder head
- 40x cable ties
- 5x adhesive bases for cable ties
- Wrench type SW17
- 8x round stickers diameter 25mm
- 3x large sticker "Lifepo.de"
- 3x small sticker "Lifepo.de"
- 2x fabric hose approx. 35cm
- 4x end plate single row
- 1x acrylic plate for BMS with 4x M2.5 threaded inserts
- 4x support A1
- 18x insulating washers for EVE 280Ah (174x204mm)
- 1x L-copper connector
- 1x contact protection cover PK
- 14x contact protection cover 72mm
- 2x terminal cover R1
- 1x terminal cover L1
- 1x 35mm² cable red
- 3x cable lug covers for 35mm² cables
- 8x cover cap for nut
- 8x sleeve for screwing onto threaded rod
- 1x contact protection cover B1 for L-copper connectors
- red highly flexible copper cable 35mm² (M6+M8)
- black highly flexible copper cable 35mm² (M6+M8)
- detailed German and illustrated instructions
- 3 years warranty (see Warranty conditions)
